4th Axis Plans

DIY 4th Axis Plans

Want a 4th axis but a factory unit is too costly for the budget? Build your own for about 1/4 of the cost of a factory unit.

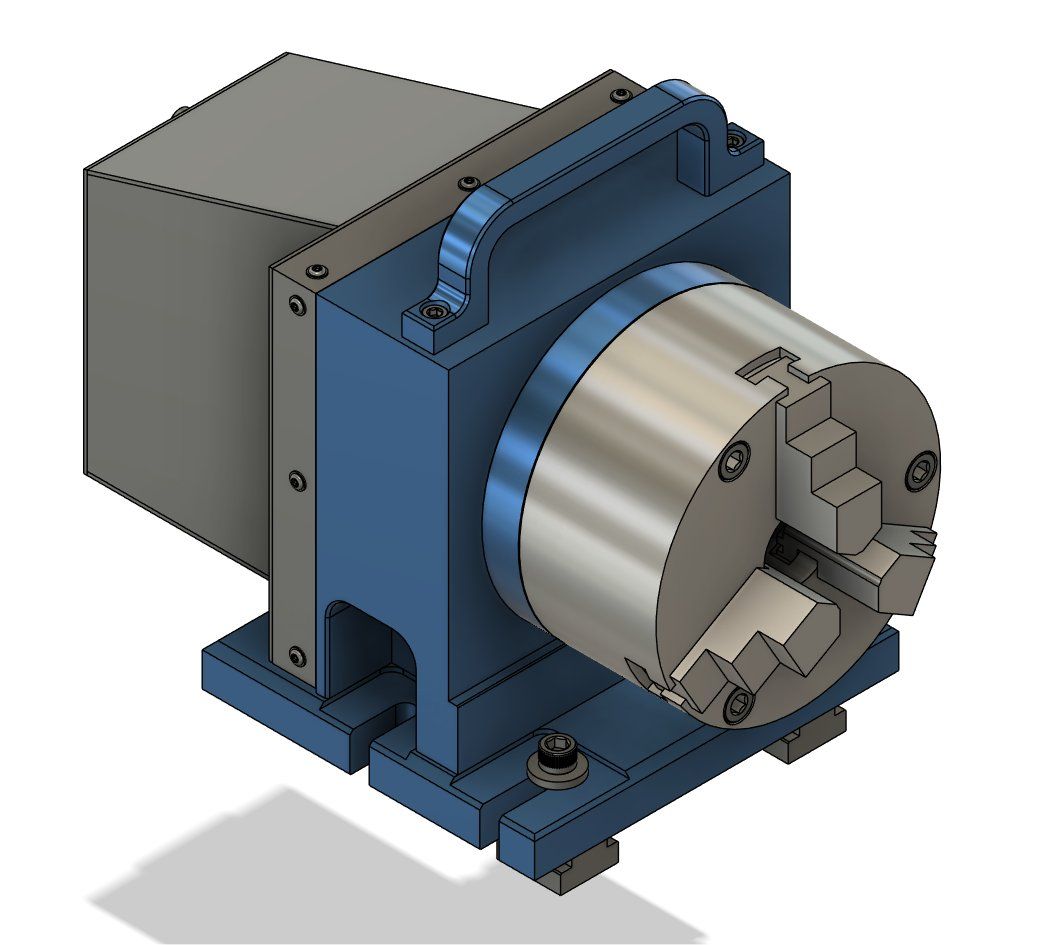

These plans are in Fusion 360 format and include a completely assembled 3D model. A spreadsheet of all parts and materials, with where to buy each one, is also included.

Not sure how to wire it and configure it to work with your machine in PathPilot? No worries, we’ve got you covered. I’ve written step-by-step instructions that take you from wiring through software setup.

Are you ready to start making 4th-axis chips?

Features

• 50:1 harmonic drive, for a max speed of 12 RPM
• 5-inch chuck mount, with options for both 3-jaw and 4-jaw chucks plus an ER40/ER50 collet system
• Pass-through hole in the back cover for long work and stock pieces
• Simple to machine for a hobbyist like myself

New addition! The plan set now includes a trunnion adapter for the Xin Dian PAF (H54-8-55) self-centering vise.

Current revision for download: Rev 3

Delivery: After purchase, you’ll get a download link by email. The link expires after 72 hours, so save the files once you’ve downloaded them.

Check out Chris Fisher’s build write-up:
https://www.facebook.com/share/p/18gboeqSEL/

Join Our DIY for Tormach Facebook Page

https://www.facebook.com/groups/519747757633717/

Disclaimer: This is an independent aftermarket product. It is not made, sold, endorsed or supported by Tormach, Inc. Tormach, PathPilot, and Rapid Turn are trademarks of Tormach, Inc. and are used here only to describe compatibility. Installing this upgrade modifies your machine and may affect your manufacturer warranty. Install and operate at your own risk, and always follow safe machining practices
