ATC Combined Kits (TTS)(Direct Dive)

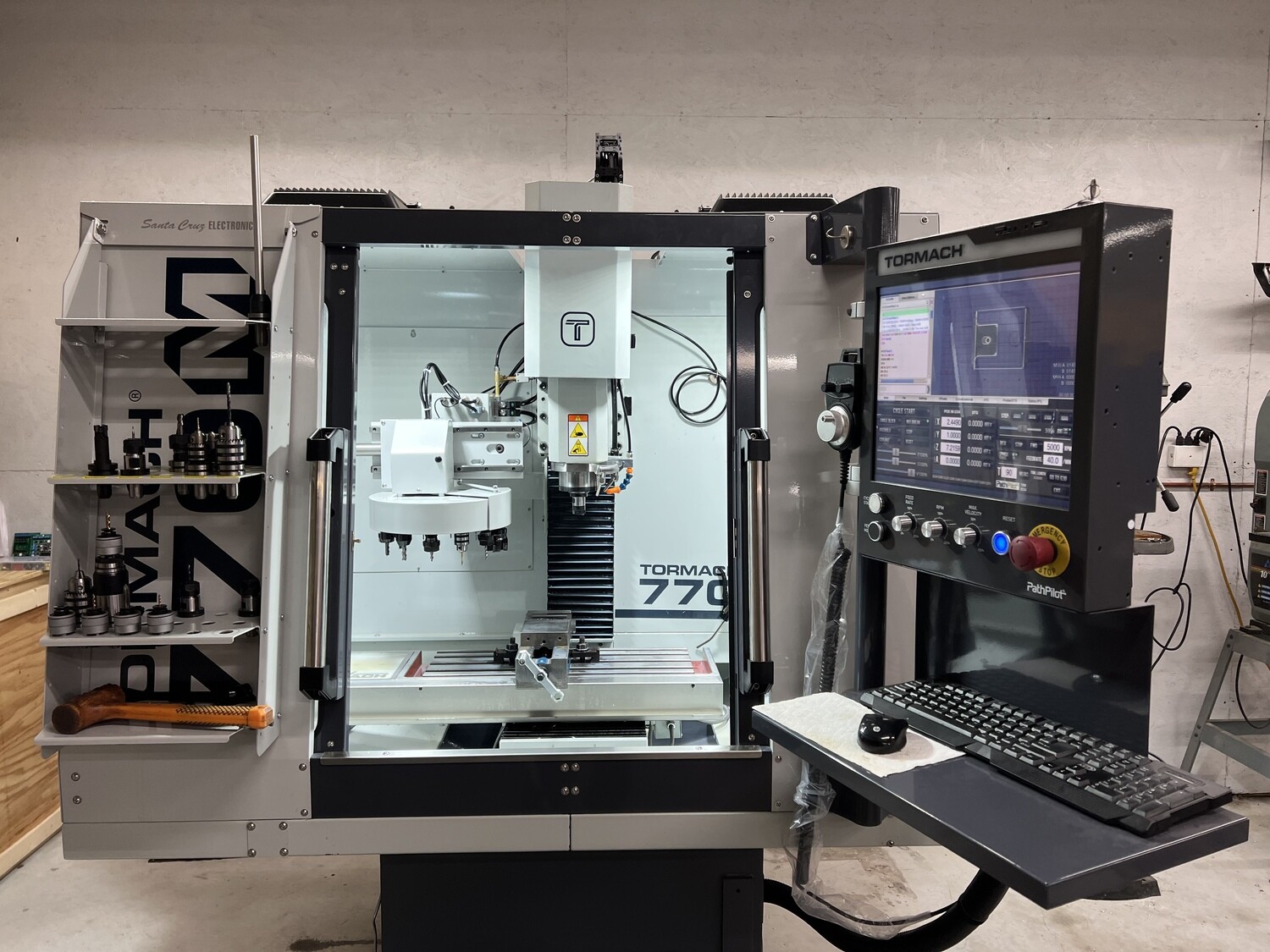

770/1100 TTS ATC Kit (Direct Drive)

Don’t have time to make your own DIY ATC parts or is the OEM system to pricey? Let us help you at a 3rd of the price compared to OEM. This 12 Tool ATC’s mechanics for TTS tools. All ATC kits will require assembly, Some wiring, plumbing, as well as setup to your machine.

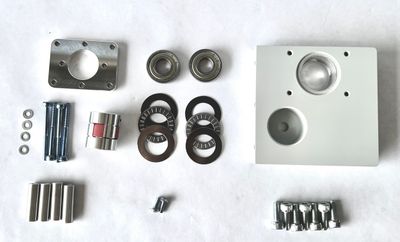

Basically, we take all the individual kits offered on this site and package together then add Linear rails, Air solenoids, Air cylinder with mount, Air PSI sensor. to make it a Semi complete kit (Approximately 95% complete)

For this ATC kit all you will have to do is assemble the mechanics mount to your machine's column, Complete minor wiring, connect power and USB cable, plumb an air supply system, perform some simple mechanical and software ATC alignments to your spindle, make some simple Path-pilot control software changes and you're ready to start making parts.

This is a DIY kit not a complete ready to go system. It requires assembly, minor electrical, Air system, plumbing, and Software setup.

Your machine will require a pneumatic power draw bar to be installed (not included)

Some common Items required and not included in the kit in order to complete your build:

• 18 AWG, 5 conductor Wire (length from electronics box to machine cabinet)
• Wire gromets and/or liquid tight fittings (for wire/cable entrance into electronics box)
• Misc 18 awg wire (for pneumatic solenoids, PSI sensor, Power Drawbar Button(s)
• ATC Connector (if your machine is equipped or you wish to add offered on this site)
• Panel mount USB adapter/cable (for UART to Machine controller(pc)
• Wire Ferrules and Crimp tool (available on Amazon, E-Bay)
• Common electrical connectors and crimp tool (Autoparts Stores, Amazon, E-Bay)
• Air system plumbing parts (NPT fittings, 1/4" air hose and fittings)

Currently we will assemble kits to order. Please contact me before ordering to get up to date lead time for shipment.

Product images for reference only actual part or system type may vary in shape, size, color, painted or not, hardware count and type.... just a disclaimer :)
