440/770/1100 Drive Plate Kit (Direct Drive)

440/770/1100 ATC Drive Plate Kit (Direct Drive Only)

For both TTS and BT30

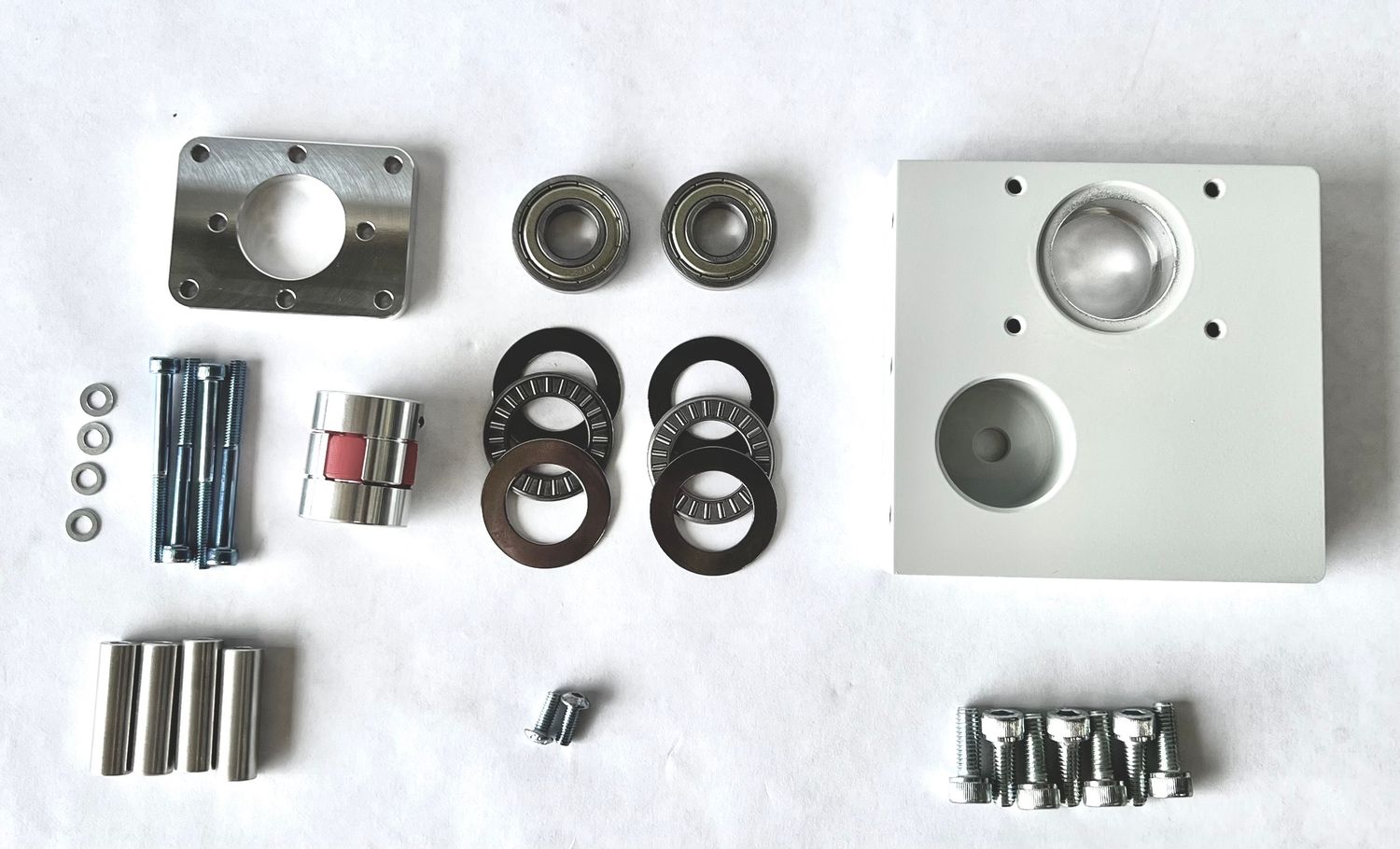

This Drive plate kit you mount to the bearing plate installing Stepper motor, bearings, Enclosure, drive shaft and fork disk assembly

Features 6061 Aluminum Drive plate, Stepper mount, and (4)Spacers. Drive plate is powder coated light gray (Near Match to OEM)

Hardware included

• (7) M6 x 16mm Cap screws (for mounting to bearing plate and enclosure)
• (2) M4 x8mm Button head screws (for enclosure cover)
• (4) M4 x 45mm Cap screws and flat washers (for stepper mount)
• (4) M4 x 10mm (for stepper mount)

• (2) Ball bearings (for shaft assembly)
• (2) Thrust bearing sets (for enclosure door function)
• (1) Plum Flex coupling (for drive shaft to stepper connection)

Product images for reference only actual part or system type may vary in shape, size, color, painted or not, hardware count and type.... just a disclaimer :)
