770/1100 ATC Rail Plate Kit (Direct Drive)
$150.00
In stock: 1 available
Product Details

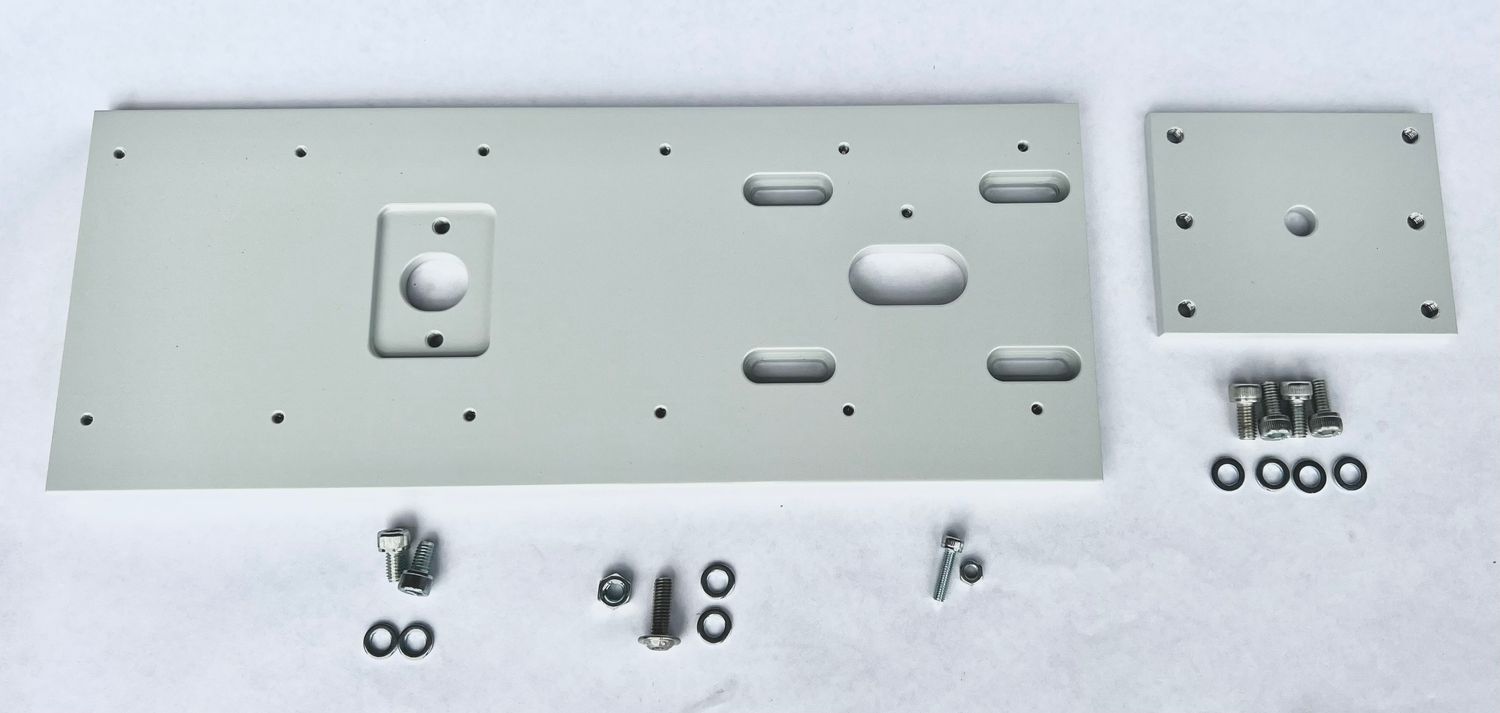

770/1100 ATC Rail Plate Kit (Direct Drive Only)
For both 3/4TTS and BT30 Designs
This kit is where you mount your HGR15 linear rails and pneumatic cylinder to allow the ATC to slide into tool change position. Also provides the X axis in/out as well as Y axis rotation adjustments when added to the column mount.
Features 6061 Aluminum Rail plate and X & Y Axis slide plate. Aluminum parts are powder coated light gray (Near Match to OEM)
Hardware included
- (6) M6 x 12mm Cap screws and washers
- (2) M6 x 10mm Cap screws and washers (for air cylinder mount)
- (1) M6 x 18mm Flanged button head with washers and jam nut (for enclosure lever)
-
(1) M4 x 16mm Cap screw and jam nut (As proximity sensor pin) - (12) M4 x 16mm Cap screws ( For linear rails)
No Linear rails or Rail hardware provided as rail manufacture supplies.
Product images for reference only actual part or system type may vary in shape, size, color, painted or not, hardware count and type.... just a disclaimer :)
