770/1100 ATC Rail Plate Kit
$135.00
In stock: 2 available
Product Details

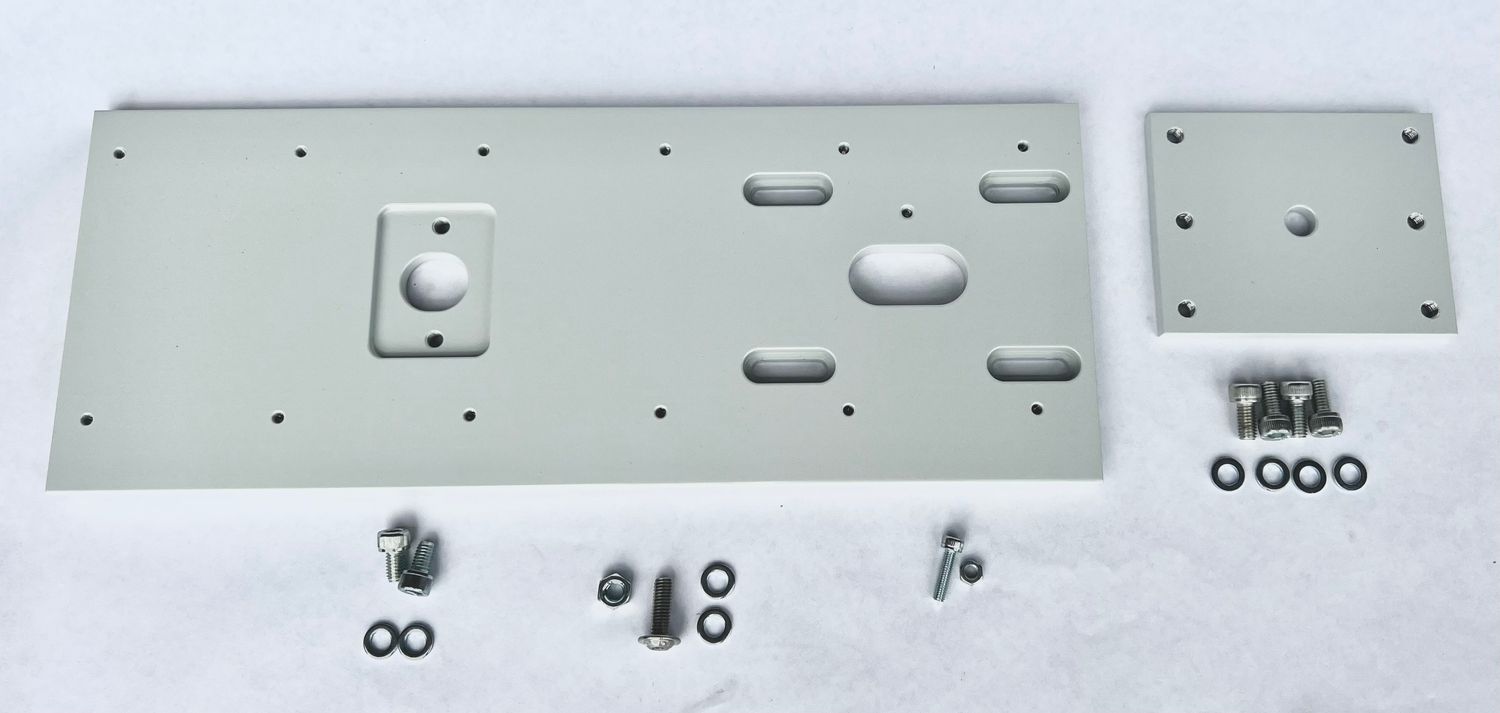

770/1100 ATC Rail Plate Kit (Direct Drive Only)
This kit is where you mount your linear rails and pneumatic cylinder to allow the ATC to slide into tool change position. Also provides the X axis in/out as well as Y axis rotation adjustments when added to the column mount.
Features 6061 Aluminum Rail plate and X & Y Axis slide plate. Aluminum parts are powder coated light gray (Near Match to OEM)
Hardware included
- (4) M6 x 12mm Cap screws and washers
- (2) M6 x 10 Cap screws and washers (for air cylinder mount)
- (1) M6 Flanged button head with washers and jam nut (for enclosure lever)
- (1) M4 Cap screw and jam nut (As proximity sensor pin)
No hardware provided for mounting linear rails as rail manufacture supplies.
Product image for reference only actual part may vary in shape, size, color, hardware count and type.... just a disclaimer :)
